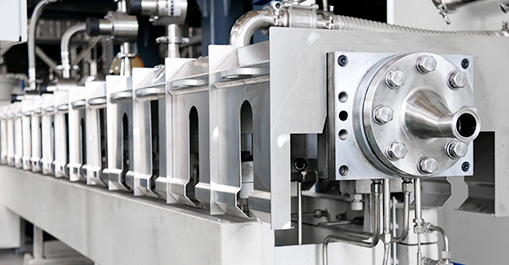

Twin-screw extruder

Function & Scope

Twin-screw extruders are widely used in the filling, reinforcement and toughening of rubber and other polymer materials, as well as new energy, special fibers, special adhesives and other industries.

Structure & Principle

     Adopting the building block design principle, the screw L/D ratio, barrel mechanism, screen change, pelletizing type and automatic control mode can be flexibly selected according to the product process requirements.


Features & Benefits


Automatic temperature control

Security and Reliability

Screw feeding system for

uniform feeding

Excellent screw self-cleaning

ability


Specification Parameters




Model



Diameter
mm



Length/DIA



Speed

rpm



Power

KW



Production capacity L/hr



KSE-5



25



28-64



800



11



0.15-35



KSE-10



35



28-64



800



30



35-100



KSE-50



50



28-64



800



45



100-150



KSE-100



62



28-64



800



75



150-300



KSE-200



72



28-64



600



132



300-600



KSE-300



93



28-64



600



160



600-1200



KSE-400



124



28-48



400



250



1200-1800



KSE-600



155



28-48



400



500



2500-3500
